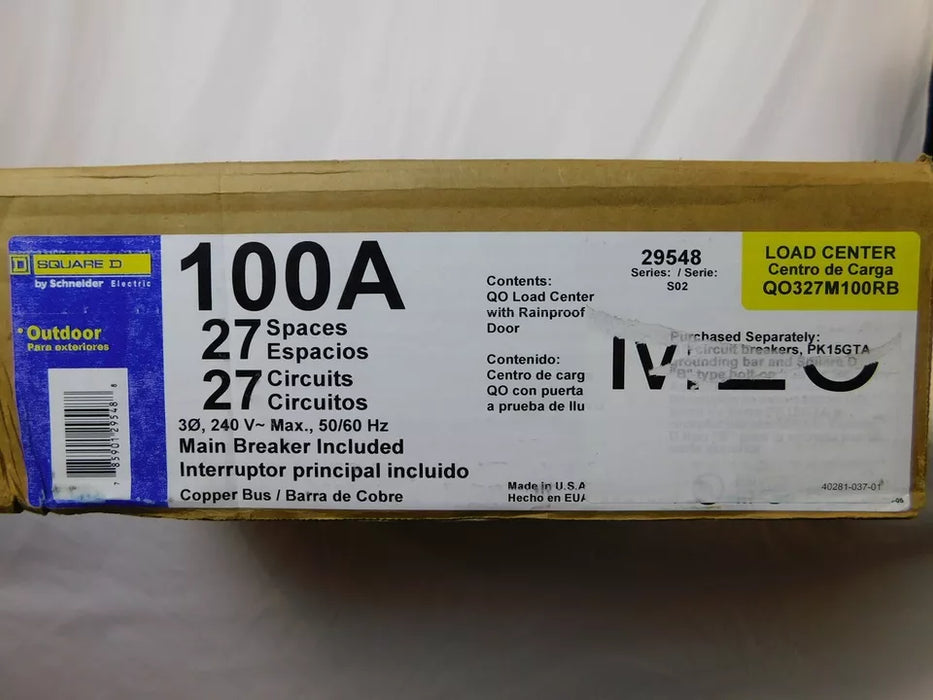

Panelboard Square D QO327M100RB (Load Center), 100A, 240V, 50/60Hz, 3PH/3W, 27Sp, NEMA 3R
Original price
$1,103.00
-
Original price
$1,103.00
Original price
$1,103.00
$1,103.00
-
$1,103.00
Current price
$1,103.00

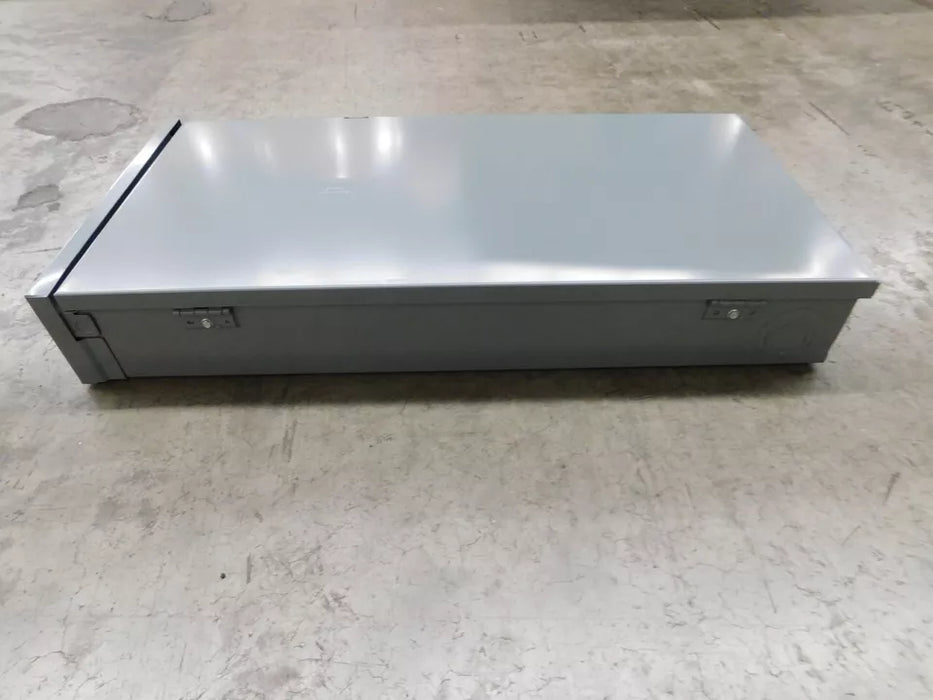

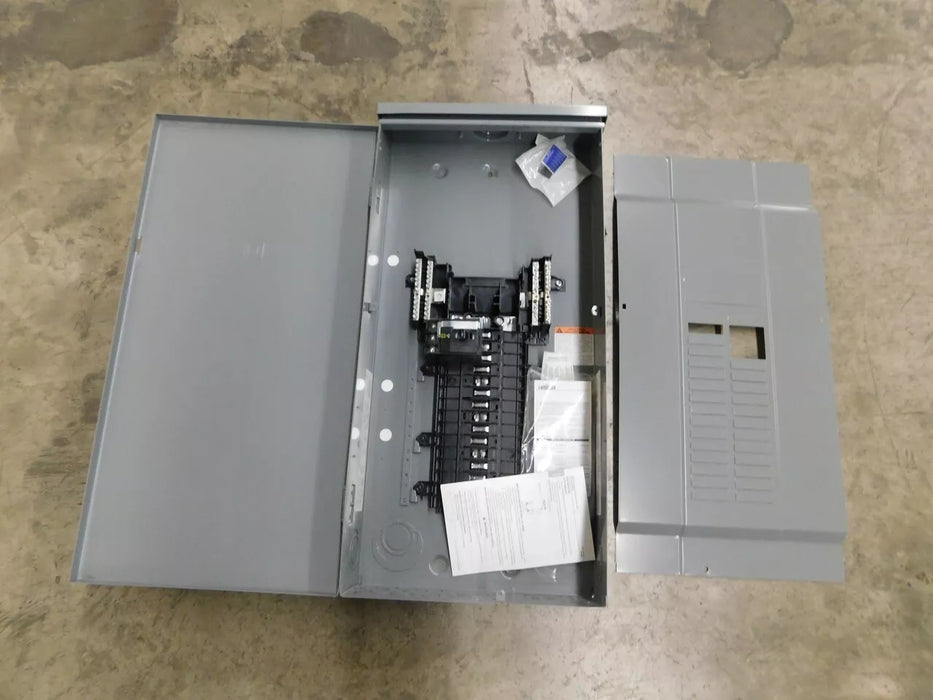

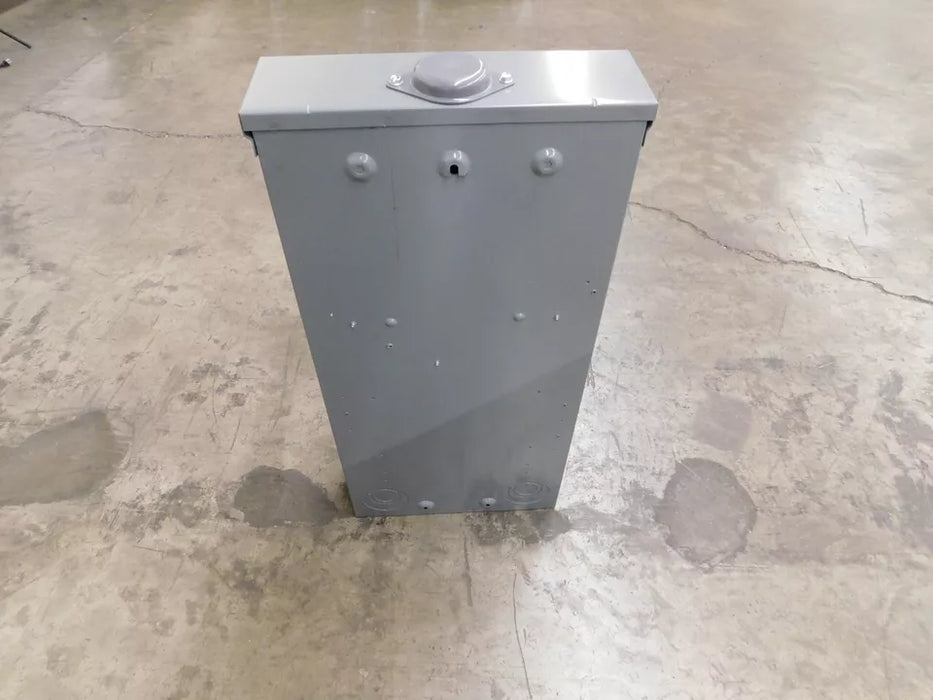

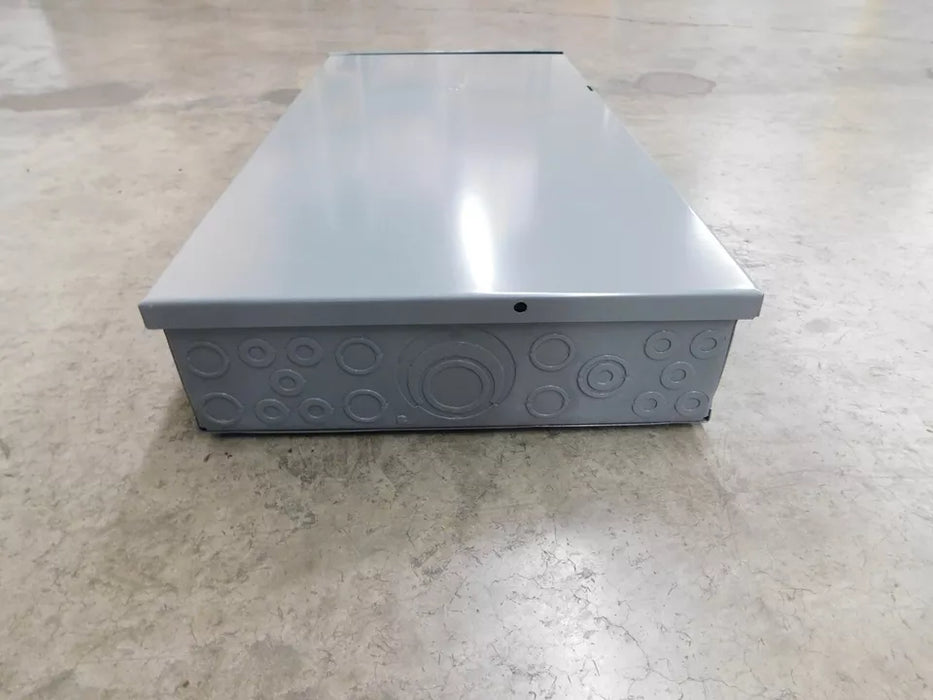

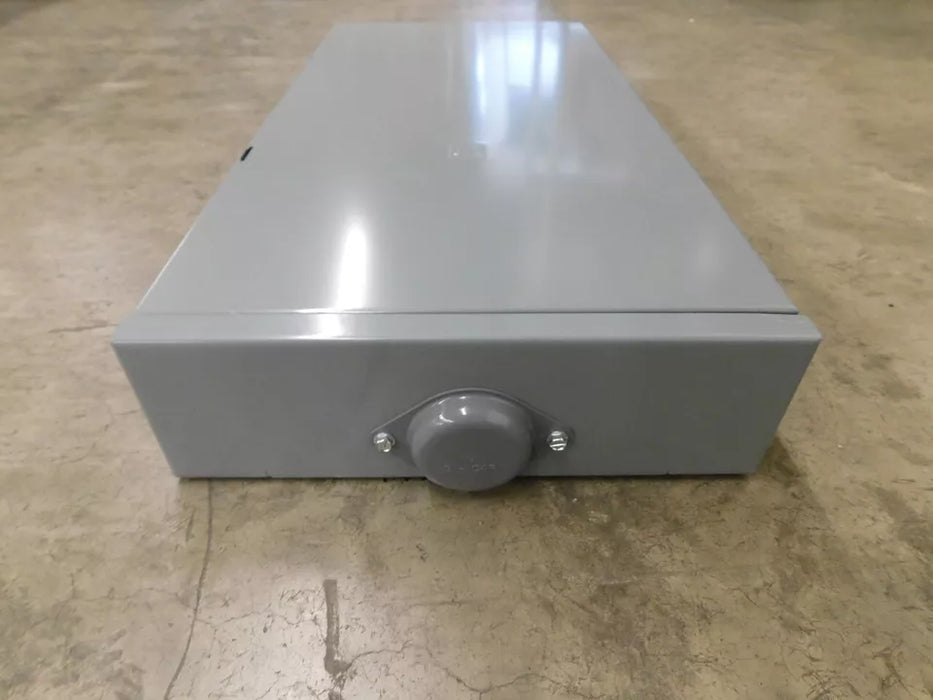

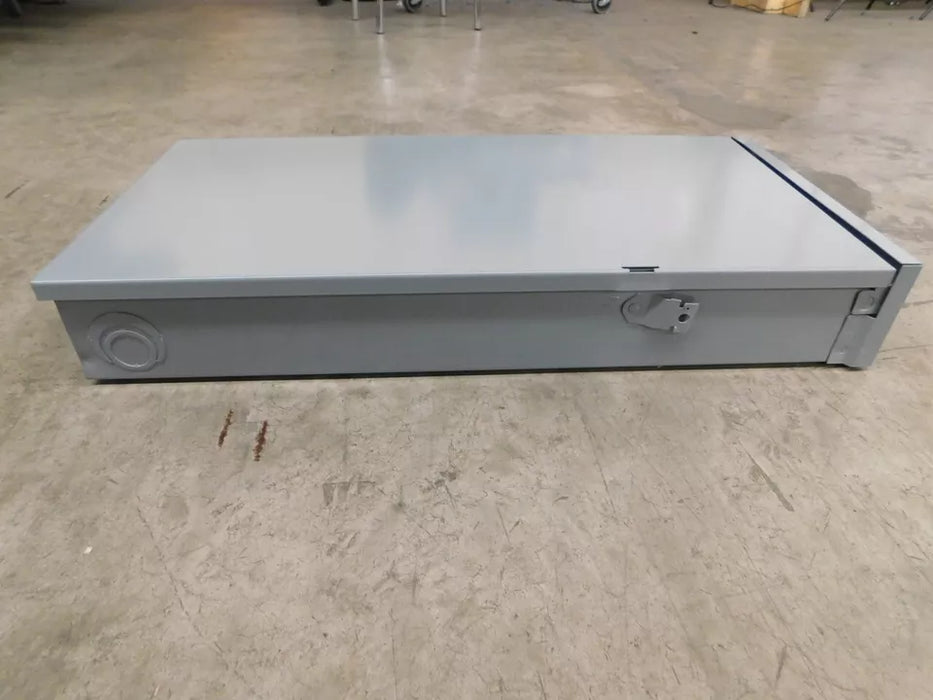

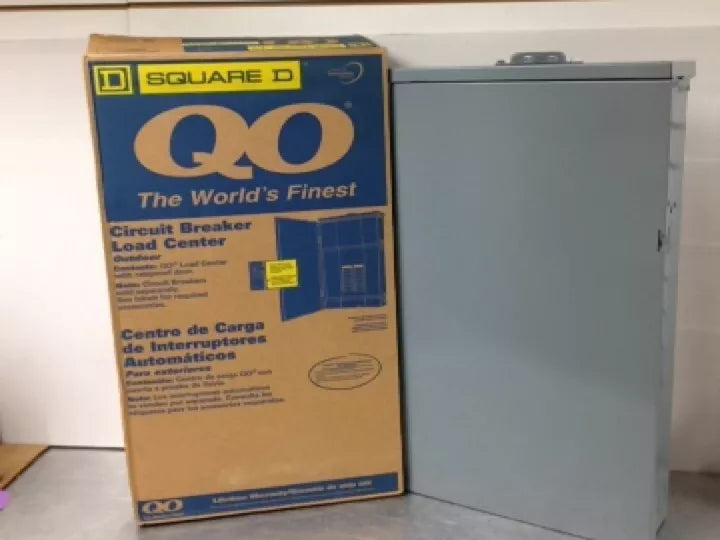

The Square D Power Bus Load Center QO327M100RB is a robust electrical solution featuring 27 spaces and a 100 AMP capacity, designed for outdoor use. This 3-phase load center operates at 240V max and includes a convertible main circuit breaker, ensuring flexibility and reliability for various applications. With its NEMA 3R enclosure, it offers superior protection against the elements, making it ideal for commercial and industrial settings. Upgrade your power distribution system with this durable and efficient load center.
Dimensions
| Height | 29.84 in |
| Width | 14.77 in |
| Depth | 4-1/2 in |
| Wire Size | AWG 4...AWG 2/0 aluminium/copper |
Details
| Item | Load Center |
| Main Circuit Breaker or Main Lug | Convertible Main Circuit Breaker |
| Number of Spaces | 27 |
| Amps | 100A |
| Voltage | 120/240V |
| Phase | 3 |
| Circuit Breaker Type | QO |
| Short Circuit Current Rating | 22kA |
| Max. No. of Tandem Breakers | 0 |
| Series | QO |
| Included Enclosure Cover | Surface Cover |
| Recommended Surface Cover | Included |
| Enclosure Material | Galvanized Steel |
| Enclosure NEMA Rating | NEMA 3R |
| Bus Material | Copper |
| Recommended Ground Bar Kit | 1D369 |
| Special Features | Mercury Free |
| Standards | RoHS Compliant, UL Listed |
| For Use With | Square D QO Circuit Breakers |
| Enclosure Surface Finish | Enamel |
| Feed Location | Top/Bottom |
| Color | Gray |
| Cover Attachment Style | Side Hinge |
| Location | Outdoor |
| Max. Operating Temp. | 104 Degrees F |
| Min. Operating Temp. | 23 Degrees F |
| Cover Closure Method | Door Latch |
| Voltage Rating | 208Y/120 V AC; 240/120 V delta AC; 240 V delta AC |
| Enclosure Rating | NEMA 3R outdoor |
| Electrical Connection | lugs |
| Ground Bar Kit | grounding bar (ordered separately) |
| Wiring Configuration | 4-wire || 3-wire |
| Number Of Circuits | 27 |
| Surface Finish | baked enamel Gray |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Enclosure Type | weatherproof enclosure |
| Cover Type | surface cover |
| Number Of Phases | 3 phase |
| Busbar Material | Tin plated copper: busbar |
| Box Number | 6R |
| Product Certifications | UL Listed |
| Ambient Air Temperature For Operation | 23°F (-5°C); 104°F (40°C) |
| Max Short Circuit Current Rating | 22 kA |
| PoN Convertible Mains | Main breaker |
| Finish | Baked Enamel |
